The D500 and D600 Solenoids are similar in that they both offer an integral cut-out switch for dual winding coils allowing for continuous duty holding. Common applications for these solenoids include two-speed throttle control, diesel engines, scissor lifts and boom lifts.

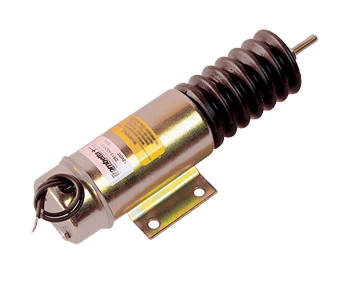

D500 Pull Solenoids
- Load requirement: Stroke of 1 inch to 1.5 inches and Force of 14 lbs to 20 lbs.
- Available in 12 Volt and 24 Volt configurations.
This heavy-duty solenoid offers an integral cut-out switch for dual winding coils providing the benefit of high energy pulling performance combined with low, cool continuous holding operation without any accessories required.
D600 Pull Solenoids
- Load requirement: Stroke of 1 inch and Force of 15 lbs.
- Available only in 12 Volt configurations.
The proven D600 Pull Solenoid eliminates environmental challenges, including vibration. Similar to the D500 Family, the D600 offers an integral cut-out switch for dual winding coils allowing for continuous duty holding. Applications include industrial brakes, locking, positioning controls and large engine and vehicle controls.
