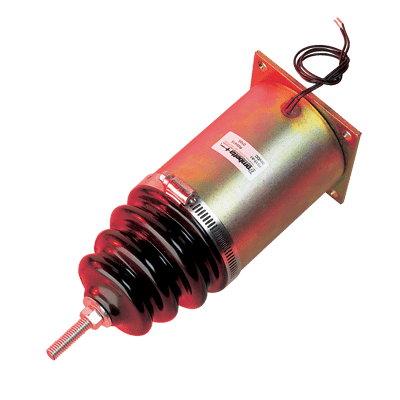

The P500 and Q500 family of solenoids have a reputation for heavy work capability, high force and stroke. Applications suitable for both the P500 and Q500 include switchgear, valve actuation, locking, and latching.
The technical drawings are published to illustrate the capabilities of SMP Trombetta solenoid manufacturing. These non-standard solenoids are available on a limited basis. Please contact SMP Trombetta with your application requirements.
P500 Pull Solenoids
- Load requirement: Stroke of 1.5 inches to 3 inches and Force of 50 lbs to 195 lbs.
- Available in 12, 24, 108, and 216 Volt configurations.
Q500 Push Solenoids
- Load requirement: Stroke of 1.5 inches to 3 inches and Force of 50 lbs to 195 lbs.
- Available in 12, 24, 108, and 216 Volt configurations.
