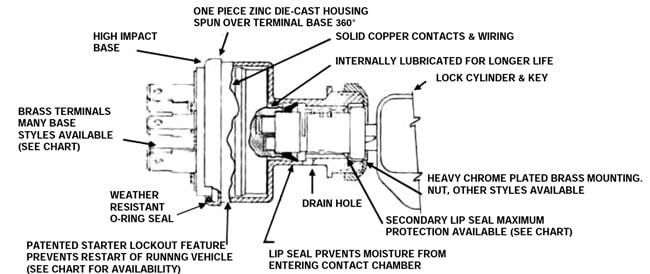

- Heavy duty die-cast housing
- Molded bakelite terminal base
- Die-case base spun over for sealing
- Palnut nut and mounting nut included
- Mixed key codes or keyed alike depending on availability
Common Available Switch Characteristics
TYPICAL RATINGS @ 14 VOLTS DC (50,000 CYCLES) |
||
|---|---|---|
| Ignition Terminal | Accessory Terminal | Start Terminal |
| 8 Amps | 30 Amps (Inductive) | 75 Amps Make 20 Amps Break |
Continuous Current Carrying Capacity – 30 Amps @ 14V Accessory Terminal with #10 Gauge Wire |
||

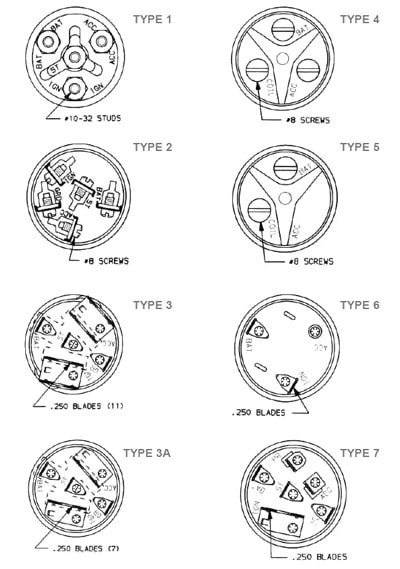

Base Types and Connections

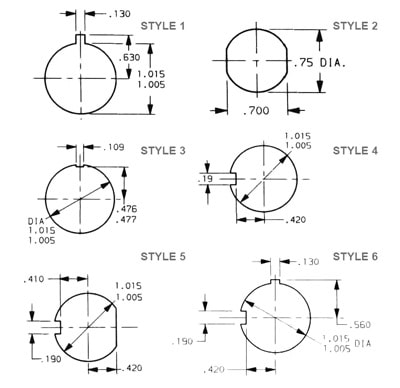

Mounting Hole Patterns
