- Separate accessory position for glow plug warming
- Popular keyed alike and lever switch options
- Durable die-cast housing
- Long lasting copper terminals for extended cycle life
- 12 or 24 Volt
4-Position Starter Switches

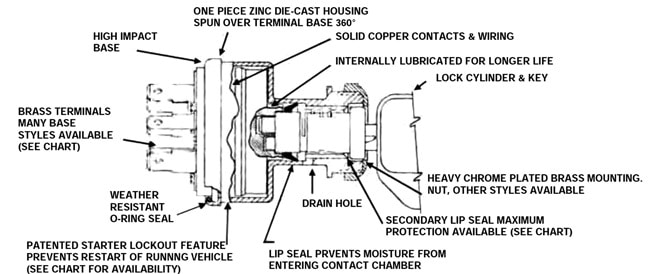

Common Available Switch Characteristics
TYPICAL RATINGS @ 14 VOLTS DC (50,000 CYCLES) |
||
|---|---|---|
| Ignition Terminal | Accessory Terminal | Start Terminal |
| 8 Amps | 30 Amps (Inductive) | 75 Amps Make 20 Amps Break |
Continuous Current Carrying Capacity – 30 Amps @ 14V Accessory Terminal with #10 Gauge Wire |
||

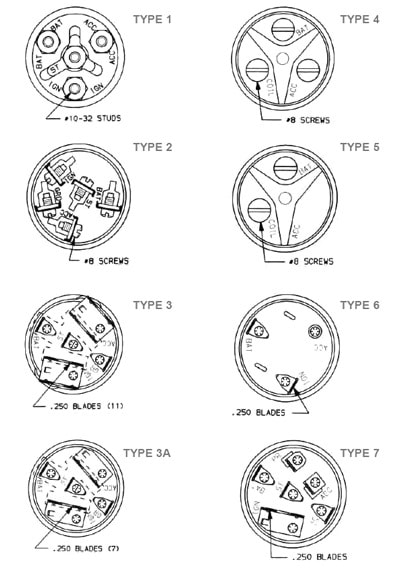

Base Types and Connections

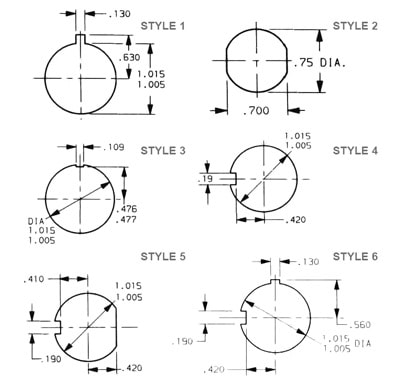

Mounting Hole Patterns
