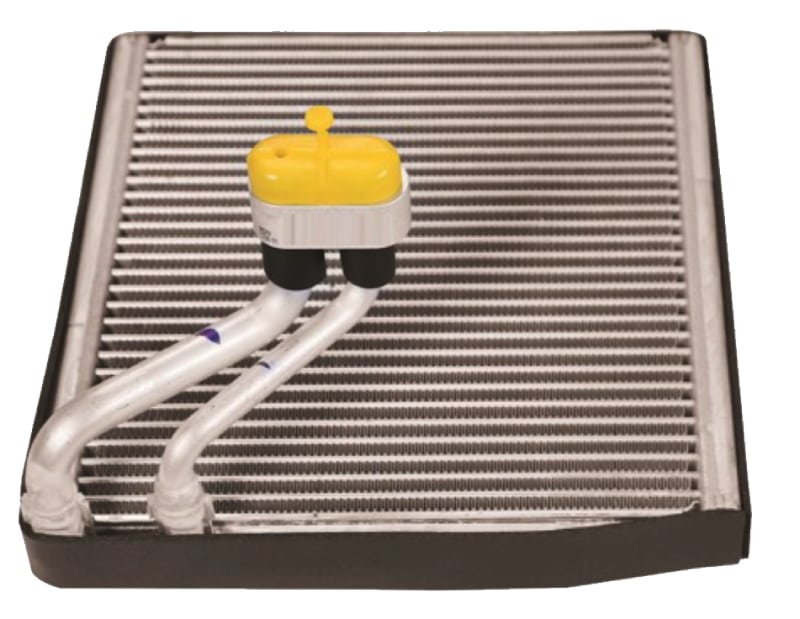

Evaporators

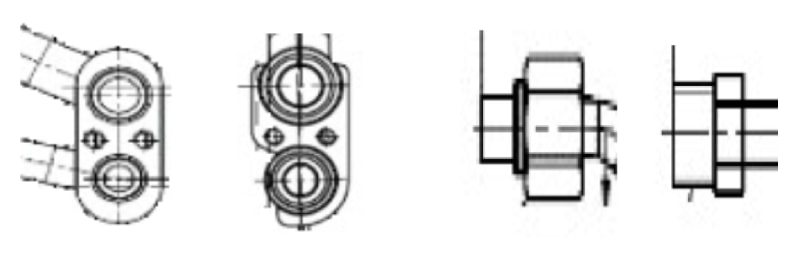

Fittings
Various fitting designs to match with the mating connectors
Fin (with Louvers)
The fin is designed according to the heat exchange performance and airside pressure drop requirements
| Characteristic | Specification |
|---|---|
| Core Length (mm) | 140 to 350 |
| Core Width (mm) | 140 to 298 |
| Core Depth (mm) | 36/38/40/46 |
| Fin Thickness (mm) | 0.07 |
| Tube Pitch (mm) | 8.65/6.8/7.1/8.65 |
| Heat Exchange (W) | Max 7,400 |
| Material | Clad aluminum |
